Product Details:
|
| Media: | Water | Material: | Brass |
|---|---|---|---|
| Pressure: | Medium Pressure | Structure: | Ball |
| Temperature Of Media: | Normal Temperature | Application: | General |
| Power: | Electric | Port Size: | 1/2" |
| Standard Or Nonstandard: | Standard | Size: | Standard Size |
| Connection: | Female-Female | Working Pressure: | PN1.6-6.4Mpa |
| Body Material: | Brass | Color: | Customer's Request |
| Medium: | Water Oil Gas | Working Temperature: | -20℃-100℃ |
| Type: | Normal Colse | Standard: | BSP |
| High Light: | 3 Wire Two Control Electric Actuator,Electric Actuator AC220V,Electric Actuator With Motorized Valve |
||

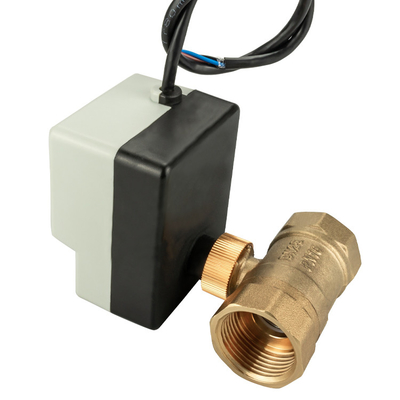

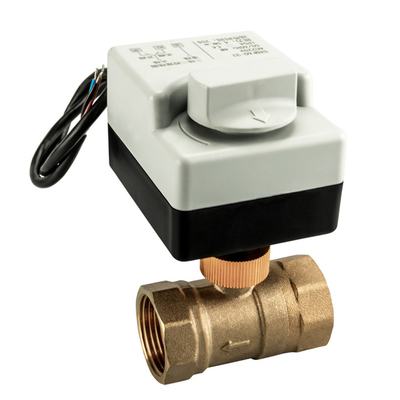

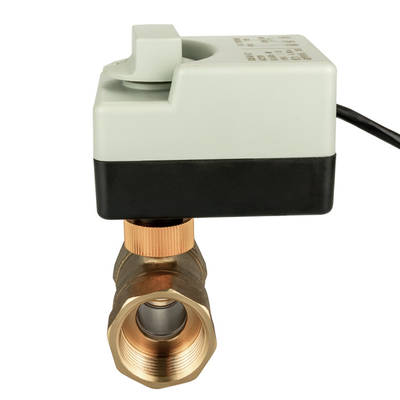

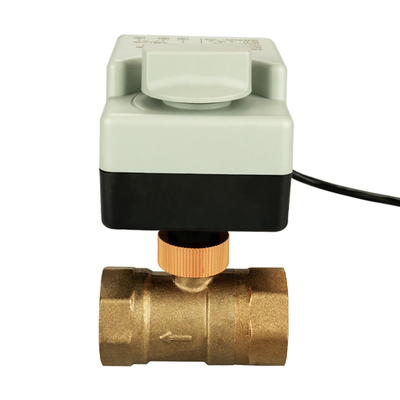

3-Wire Two Control Electric Actuator AC220V 3 Ways/2 Way DN15 DN20 DN25 with Manual Switch Brass Motorized Valve
★Introduction –This series is a self-checking intelligent electric ballvalve. It is suitable for on-off control in heating systems and air-conditioning fan coil systems. It consists of aball valve and an actuator. The actuator drives the valveball to rotate 90°. The actuator is driven by asynchronous motor and built-in limit contacts, which can make the valve power off when the valve is fully open orfully closed, and the action is stable. LED lights are used to indicate the exterior, and the red and green lightsare switched to determine whether the valve is normallyopened or closed to achieve the self-check function. (Whenthe valve is fully open, the red light is off and the green light is on. When the valve is fully closed, the green light is off and the red light is on. If the valve is not fully opened or closed, the red and green lights areon at the same time. Maintenancepersonnelonlyneedtolookatthelighttoknow the problem. It is more suitable for installation and use in narrow, dark and inconvenient places for maintenance. For example, installation and use at the waterway control at the end of the central air conditioner).
★Function –Analog quantity regulation for liquid, gas and wind system pipeline medium flow;In the control of large valves and wind systems, electric valves can also be used for two-position switch control.
★Application– Canning / bottle system, beer brewing and beverage technology chemical industry, fluid mixing device, food industry concrete and cement industry, vacuum technology, water treatment device, pneumatic device, laundry room, medical equipment, boiler feed water, process control and other fields
★Installation–
1, This valve is mainly used to adjust the water flow. Please make sure that the direction of the water flow in the valve body is correct when installing.
2, Confirm that the connected voltage meets the requirementsof the driver.
3, The connected line meets the requirements of the site and is wired by professional technicians.
4, When installing or repairing, cut off the power supply to prevent damage to the equipment or electric shock.
5. Please make sure that the water quality in the pipeline meets the air-conditioning pipeline water standard.
6. Before leaving the installation site, you should observe at least three complete operating cycles of the driver. If the installation or wiring is correct but the driver does not work properly, you need to change the driver or contact the nearest supplier.
| Application | General |
| Temperature Of Media | Normal Temperature |
| Power | Hydraulic |
| Port Size | 1/2"-1" |
| Body Material | Brass |
| Port | Ningbo/Shanghai |
| Working Temperature | -5-60℃ |
| Certificate | ISO9001 2015 CE |
| Connection | Female*Female Thread,BSP |
| Standard Or Nonstandard | Standard |
| Material | Brass |
| Pressure | Low Pressure |
| Media | Water |
| Structure | BALL |
| Name | Electric Two Way Ball Valve |
| OEM | TMOK Or Professional OEM |
| Technical | Forged |
| Color | Brass Color |
| Working Medium | Air Water Gas |

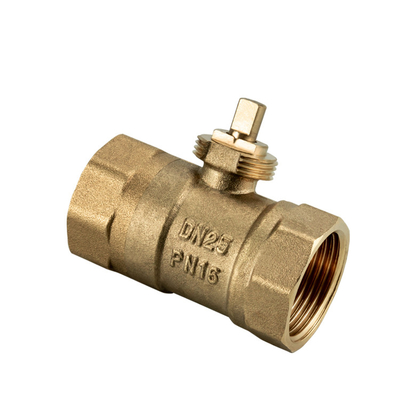

Details

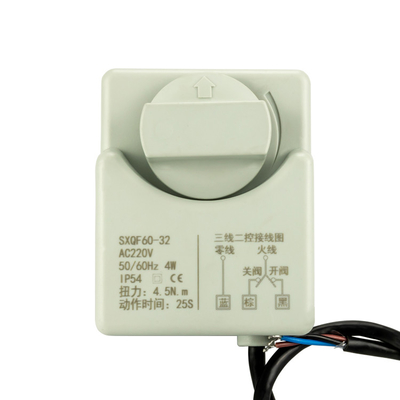

Technical Sheet
More models
TK-262 1/2" is our hot sell Electric Valve,Each year sell more than 200000 PCS.
Our factory just do all kinds of Electric Valve now,TK-262 Electric Valve is our main production,It's high quality with competitive price.
Q.How to request a manufacturing quote?
A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.
A.For custom order,TMOK can design full-color custom packaging to match your brand ,if requires .Most shipments
include boxes packed inside an outer carton and placed on a wooden pallet.
A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or
packaging.
A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year
warranty on al purchases that begins with the bill of lading
