Product Details:
|
| Application: | General | Material: | Brass |
|---|---|---|---|
| Temperature Of Media: | Normal Temperature | Pressure: | Low Pressure |
| Power: | Hydraulic | Media: | Water |
| Port Size: | 1/4"-2" | Structure: | BALL |
| Body Material: | Brass | Name: | Brass Ball Valve |
| Port: | Full Port | OEM: | TMOK Or Professional OEM |
| Working Temperature: | -10-110℃ | Technical: | Forged |
| Certificate: | ISO9001:2015 CE | Color: | As Required |
| Connection: | Female Thread,BSP | Working Medium: | Air Water Oil Gas |
| Standard Or Nonstandard: | Standard | Selling Units: | Single Item |
| Single Package Size : | 38X26X21 Cm | Single Gross Weight: | 24.000 Kg |
| Package Type: | Standard Export Package Carton Or As Your Requirement | ||
| High Light: | tmok valve,6mm ball valve,tmok manual ball valve |
||

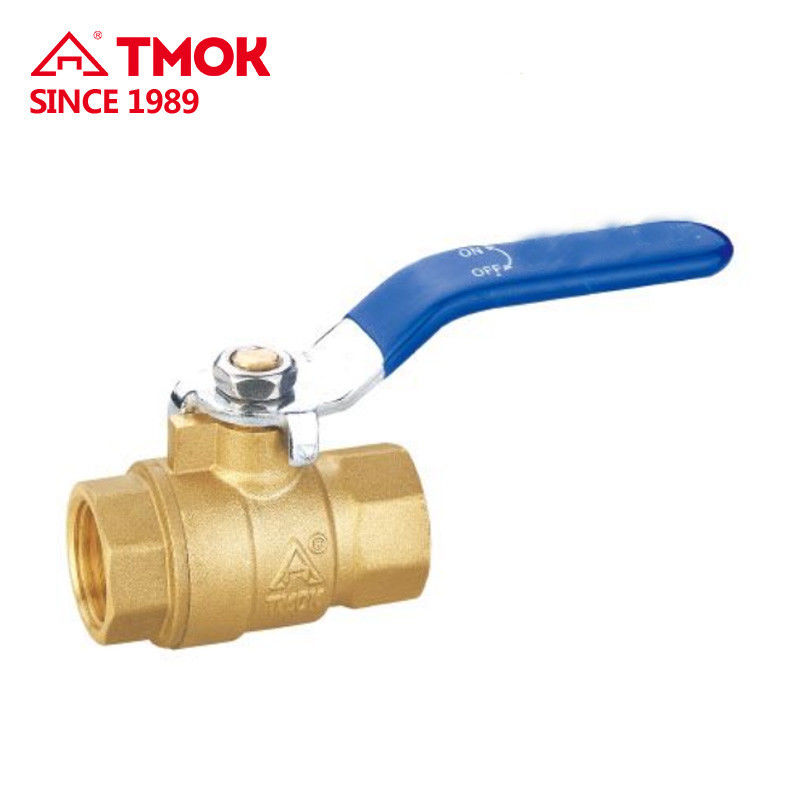

TMOK 6mm Threaded Brass Ball Valve Manual With Adjusting Iron Handle
Ball valve installation&application instruction
1.Range of application
The ball valve is mainly used for cutting off, distributing and changing the direction of the flow medium in the pipeline. To prolong the service life of the ball valve, full open and full close are highly suggested.
2.Main technical parameters of the product
2-1. we select high quality copper material and apply hot forging process in the production process.
2-2. The main working medium are water,oil,gas,etc.
2-3. working temperature range from -10℃-120℃
2-4. each normal working pressure of our ball valve are 2. 5Mpa,2.0Mpa and 1.6Mpa
3.Installation manual
3-1. For pipe thread connection type ball valve,we should make sure the pipe being vertical against the end surface of the valve body when tighten the connection part.our special warning is that we should only wrench the octagonal at the same end of body instead of the other side to avoid
deformation so as to affect its normal open function.
3-2. For internal thread type ball valve,we should control the length of the external thread at the pipe end in case deformation of the valve body caused by the external thread's aqueezing the surface of the internal thread so as to affect leakproofness
3-3. When connecting the pipe thread type ball valve with pipe thread,the internal thread can be either tapered pipe thread or cylindrical pipe thread,but the external thread must be tapered pipethread,otherwise it will cause leakage due to loose connection.
3-4. When intallilgn the pipe thread type ball valve,the sealing material must be clean.
3-5. Such obstacles as wall,coupling nut and pipe should not be placed inside the open/close range .
3-6. When the ball valve handle is parallel to the body,it is open,otherwise,it is close.
3-7. The working medium should not contain particles,corrosive gas or liquid
3-8. PP-R ball valve installation instruction:
3-8-1. Remove the coupling nut,PP-R pipe and O-ring from the valve body
3-8-2. Pull the coupling nut on the pipe in the original direction
3-8-3. Join the PP-R flange with PP-R pipe with a hot fusion machine.Pull the O-ring in the PP-R flange when it cooled down.Last,tighten the coupling nut with valve body.
Parameters
| Port | Full Port |
| Working Temperature | -10-110℃ |
| Certificate | ISO9001 2015 CE |
| Connection | Female Thread,BSP |
| Standard Or Nonstandard | Standard |
| Single Package Size | 38X26X21 Cm |
| Package Type | Standard Export Package Carton Or As Your Requirement |
| Material | Brass |
| Pressure | Low Pressure |
| Media | Water |
| Structure | BALL |
| Name | Brass Ball Valve |
| OEM | TMOK Or Professional OEM |
| Technical | Forged |
| Color | As Required |
| Working Medium | Air Water Oil Gas |
| Selling Units | Single Item |
| Single Gross Weight | 24.000 Kg |
Details
Technical Sheet
Q.Which size sell best?
TK-5033 1/2" is our hot sell Brass Ball Valve,Each year sell more than 200000 PCS.
Our factory just do all kinds of foot valves now,TK-5033 Brass Ball Valve is our main production,It's high quality with competitive price.
Q.How to request a manufacturing quote?
A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.
A.For custom order,TMOK can design full-color custom packaging to match your brand,if requires.Most shipments
include boxes packed inside an outer carton and placed on a wooden pallet.
A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or
packaging.
A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year
warranty on al purchases that begins with the bill of lading.
