Product Details:
|
| Item: | Bibcock | Size: | 1/2"-1" |
|---|---|---|---|
| Brass Material: | 57-3 | Connection Type: | Female BSP X Female BSP |
| Handle Material: | IRON | Stem Material: | Brass |
| Seat Material: | PTFE | Body Seal Material: | PTFE |
| Ball Material: | Chrome Plated Brass | Valve Basic Body Material: | Brass |
| Surface Treatment: | Nickel Plating | Application: | Water |
| Max. Temp: | -20°C To+100°C | Working Pressure: | PN16 |
| High Light: | low lead Brass Bibcock,Bibcock Valve with lock hole,low lead bib tap valve |
||

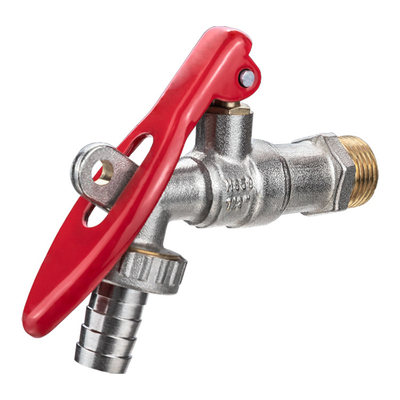

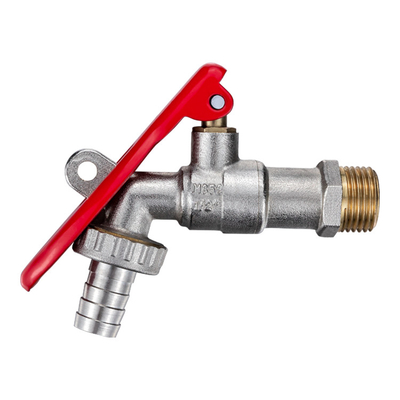

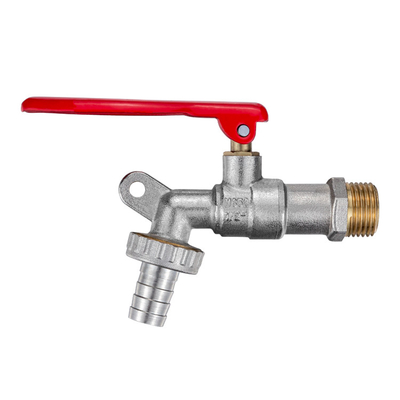

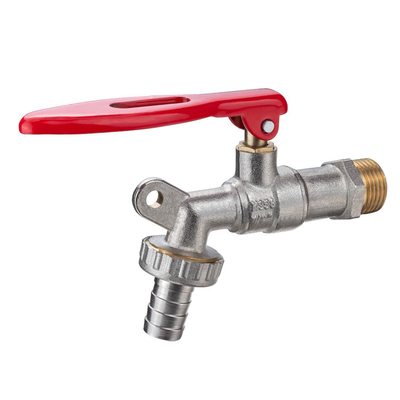

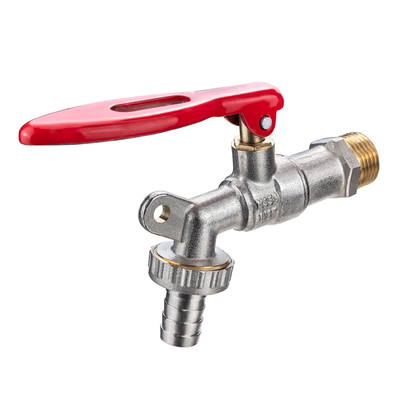

IRON Handle Low Lead Brass Bathroom Water Garden Tap Bibcock Valve With Lock Hole
Parameters
| Item | Bibcock |
| Brass Material | 57-1 |
| Handle Material | IRON |
| Seat Material | PTFE |
| Ball Material | Chrome Plated Brass |
| Surface Treatment | Nickel Plating |
| Max. Temp | -20°C To+100°C |
| Size | 1/2"-1" |
| Connection Type | Female BSP X Female BSP |
| Stem Material | Brass |
| Body Seal Material | PTFE |
| Valve Basic Body Material | Brass |
| Application | Water |
| Working Pressure | PN |
| Product customization instructions | |||||||||
|
|
Hand | The color is up to you | |||||||
| Ball | brass | or | iron | ||||||
| Water outlet | machine mouth | copper skin | |||||||
| Surface treatment | nickelplate | brass color | |||||||
| Screw thread | G(BSP) | NPT | |||||||
| Brass | HPb57-3 | CW617N | |||||||
| Brass element table | Cu | 56.5-58.5 | Cu | 57-59 | |||||
| Ni | 0.5 | Ni | <0.3 | ||||||
| Fe | 0.5 | Fe | <0.3 | ||||||
| Pb | 2.0-3.0 | Pb | 1.6-2.5 | ||||||
| Zn | allowance | Zn | allowance | ||||||
| Product size parameters | |||||||||
 |
|||||||||
| A | B | C | D | E | F | G | H | I | |
| DN15 | 1/2" | 14.5 | 10 | 3/4" | 21 | 11.5 | 14.5 | 13.5 | 10.3 |
| DN20 | 3/4" | 20 | 14 | 1" | 28.8 | 14 | 19.7 | 17.5 | 15 |
| DN25 | 1" | 26 | 15 | 1-1/4" | 33.5 | 17 | 26.3 | 25 | 19.5 |

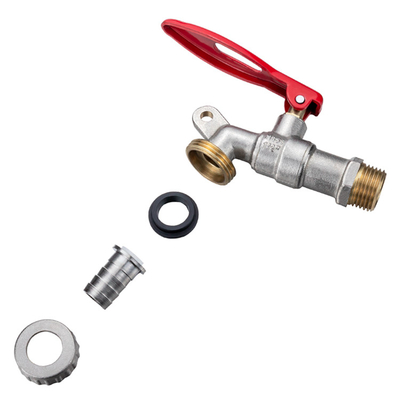

| Product accessories materials |
|
|
| Brass | ||
| Iron | ||
| Poly tetra flioroethylene | ||
| Nitrile butadiene rubber | ||
| Plastic | ||
| Aluminum | ||
| Work envirinment:-10°C~100°C | ||
| Stock description | ||
| Size: | 1/2" | |
| Ball: | brass | |
| Hand: | red | |
| Valve body surface: | nickel plated,brass tgread | |
| Water outlet: | machine mouth | |
| Screw thread: | G(BSP) | |
| Brass: | HPb57-3 | |
Q.Which size sell best?
TK-503 1/2" is our hot sell Garden Taps,Each year sell more than 200000 PCS.
Our factory just do all kinds of Garden taps now,TK-503 Garden Tap is our main production,It's high quality with competitive price.
Q.How to request a manufacturing quote?
A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.
A.For custom order,TMOK can design full-color custom packaging to match your brand ,if requires .Most shipments
include boxes packed inside an outer carton and placed on a wooden pallet.
A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or
packaging.
A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year
warranty on al purchases that begins with the bill of lading
