Product Details:
|
| Application: | General | Material: | Brass |
|---|---|---|---|
| Temperature Of Media: | High Temperature | Pressure: | High Pressure |
| Power: | Manual | Media: | Water |
| Port Size: | 3/4"-2" | Structure: | Pressure Reducing |
| Body Material: | Hpb57-3/Hpb59-1 | Surface Treatment: | Nickel Plated, Sand Blasting, Chrome,Brass Color |
| Port: | Ningbo/Shanghai Port | Thread: | BSPP BSPT |
| Working Pressure: | 16bar/232psi | HS Code: | 8481804090 |
| Working Medium: | Water, Gas ,Water, Oil And Air | Test: | 100%Leakage Testing |
| Technical: | Forged | Certificate: | ISO9001:2015 CE |
| Standard Or Nonstandard: | Standard | ||
| High Light: | brass water pressure reducing valve,adjustable water pressure reducing valve,1 prv valve |
||

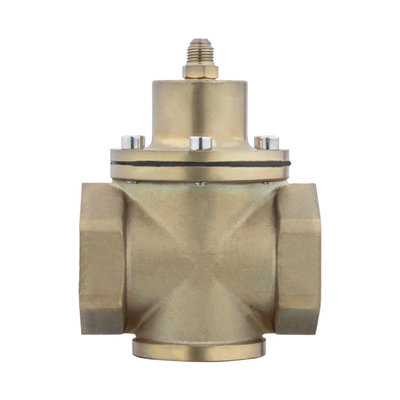

Forged Self Operated 3/4 Inch-2 Inch Adjustable Water Brass Differential Pressure Valve
★Introduction –The pressure reducing valve adjusts the flow of the medium by controlling the opening of the opening and closing parts in the valve body to reduce the pressure of the medium. Within the range, when the inlet pressure is constantly changing, keep the outlet pressure within the set range to protect subsequent living and production appliances.
★Function–Its main function is to reduce the pressure of the air source and stabilize it to a fixed value, so that the regulating valve can obtain stable air source power for regulation and control.
★Working Principle– The pressure reducing valve reduces the inlet pressure to a certain required outlet pressure through the throttling of the opening and closing parts, and keeps the outlet pressure stable. However, the general pressure reducing valve requires that the pressure difference between the inlet and outlet must be ≥ 0.2Mpa.
★Installation–
1. Handwheels, handles and transmission mechanisms are not allowed to be used for lifting, and collisions are strictly prohibited.
2. The double disc gate valve should be installed vertically (that is, the valve stem is in the vertical position and the hand wheel is on the top).
3. The gate valve with a bypass valve should be opened before opening the bypass valve (to balance the pressure difference between the inlet and outlet and reduce the opening force).
4. The gate valve with transmission mechanism shall be installed according to the product instruction manual.
5. If the valve is often used on and off, lubricate it at least once a month
Parameters
| Application | General |
| Temperature Of Media | High Temperature |
| Power | Manual |
| Port Size | 3/4"-2" |
| Body Material | Hpb57-3/Hpb59-1 |
| Port | Ningbo/Shanghai Port |
| Working Pressure | 16bar/232psi |
| Working Medium | Water, Gas ,Water, Oil And Air |
| Technical | Forged |
| Standard Or Nonstandard | Standard |
| Material | Brass |
| Pressure | High Pressure |
| Media | Water |
| Structure | Pressure Reducing |
| Surface Treatment | Nickel Plated, Sand Blasting, Chrome,Brass Color |
| Thread | BSPP BSPT |
| HS Code | 8481804090 |
| Test | 100%Leakage Testing |
| Certificate | ISO9001 2015 CE |
Details
Technical Sheet
More models
TK-913 1/2" is our hot sell pressure relief Valve,Each year sell more than 200000 PCS.
Our factory just do all kinds of Air Vent Valve now,TK-913 pressure relief Valve is our main production,It's high quality with competitive price.
Q.How to request a manufacturing quote?
A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.
A.For custom order,TMOK can design full-color custom packaging to match your brand ,if requires .Most shipments
include boxes packed inside an outer carton and placed on a wooden pallet.
A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or
packaging.
A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year
warranty on al purchases that begins with the bill of lading
